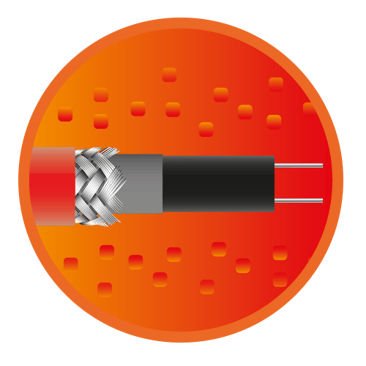

THERMTRACE® SUPER

SELF-REGULATING PARALLEL HEATING TAPE

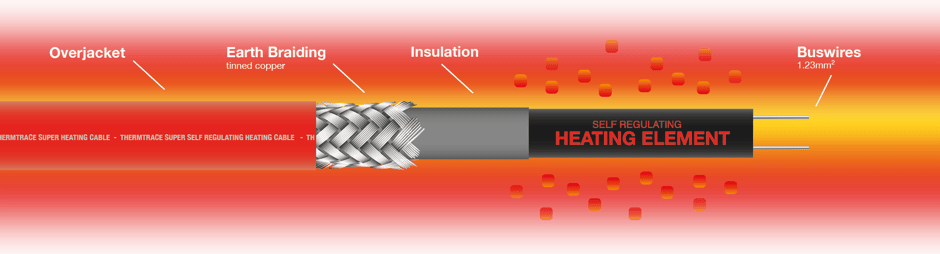

Properties of heating tape

• Self-regulating

• 7 power output ranges

• Cut-to-length

• High chemical resistance

Technical data

Maximum exposure temperature (unpowered): 210°C

Maximum operating temperature: 120°C

Nominal voltage: 230V

Min. bending radius: 25mm

Min. installation

temperature: -45°C

Buswires: nickel plated copper

Applications

The ThermTrace Super is an industrial grade self-regulating heating tape for high temperatures. Its application ranges from freeze protection and temperature maintenance of pipework and vessels in a large number of industrial applications and Ex-areas such as power plants and the chemical and petrochemical industry. The ThermTrace Super withstands aggressive chemicals and oil thanks to his fluoropolymer overjacket.



Properties of heating tape

Name



Power output

on insulated

metal pipes

at 10°C (W/m)

Maximum permissive
temperature (°C)

Nominal

Dimension

10 TTS-2  10

210

10.5 x 4.0

15 TTS-2  15  210  10.5 x 4.0
20 TTS-2  20  210  10.5 x 4.0
30 TTS-2  30  210  10.5 x 4.0
45 TTS-2  45 210  10.5 x 4.0
60 TTS-2  60  210  10.5 x 5.0
75 TTS-2  75 210  12.5 x 5.0
10 TTS-2-BOT  10  210  12.5 x 5.0
15 TTS-2-BOT  15  210 12.5 x 5.0
20 TTS-2-BOT  20  210  12.5 x 5.0
30 TTS-2-BOT  30  210  12.5 x 5.0
45 TTS-2-BOT  45  210  12.5 x 5.0
60 TTS-2-BOT 60 210  12.5 x 5.0
75 TTS-2-BOT  60  210  12.5 x 5.0

Product ordering information:

TTS-2: Cable with first insulation only

TTS-2-BOT: Cable with protective braid and fluoropolymer overjacket

Maximum recommended length of heating circuit at 230 VAC using Type-C circuit breakers:

Product

Reference

Circuit

Breaker

+10°C

-10°C

-20°C

10TTS

16A  190m 182m  170m
10TTS  25A  193m  183m  171m
10TTS  32A 194m  185m  174m
15TTS  16A  155m  130m  119m
15TTS  25A 157m  147m  135m
15TTS 32A  159m  148m 135m
20TTS  16A  120m  109m  93m
20TTS  25A  137m  128m  119m
20TTS  32A  139m  130m  120m
30TTS  16A  81m  71m  65m
30TTS  25A 109m  104m 97m
30TTS  32A  113m  107m  99m
45TTS  16A  60m  58m  43m
45TTS   25A 84m  79m 69m
45TTS  32A  90m  85m  82m
60TTS  16A  43m  39m  37m
60TTS  25A  65m  60m  57m
60TTS  32A  80m  72m  68m
75TTS  16A  35m  31m  30m
75TTS  25A  55m  48m  46m
75TTS  32A  67m  62m  60m

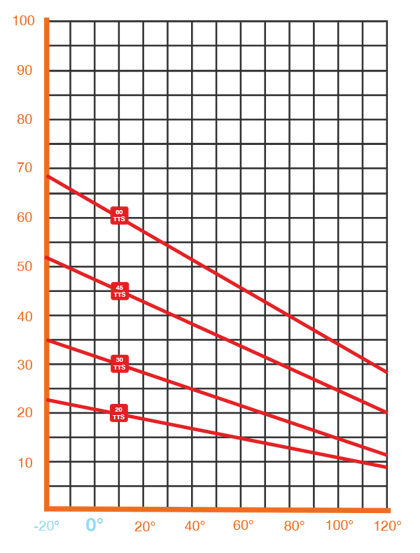

Temperature (°C) / Loading (W/m) diagram
