Therm Control Ex
EX-CAPILLARY-THERMOSTAT

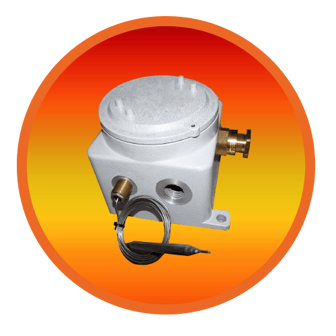

The capillary thermostat ThermControl is approved for use in hazardous areas Zones 1 and 2 for gas and Zones 21 and 22 for dust as a surface thermostat on pipes and vessels. There are different temperature ranges possible. The material of the capillary tube is stainless steel and the rugged enclosure is made of aluminium.

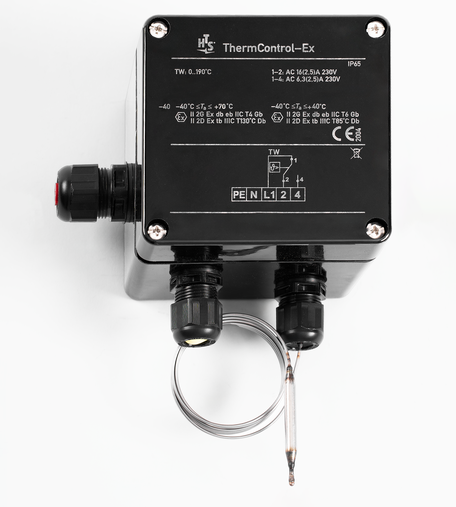

ThermControl Ex
Properties
• Robust
• Versatile use
Applications
• Industrial applications
• Use in hazardous areas
• Heat tracing on pipes, valves and vessels
• Oil & gas industry
| Name | Temperature Range (°C) |
| ThermControl Ex | 0 °C up to +200 °C |
Technical data
Ex-Classification: II 2G Ex d IIB T6 Gb II 2D Ex tb IIIC T85°C Db
Ambient temperature: -32 °C up to +50 °C
IP rating: IP66
Switching capacity: 16A at 230V
Switching differential: 1 pol.
Switching contact: 1 pol.
Capillary tube: Stainless steel
Enclosure: 120mm x 120mm x 110 mm
Bending radius
capillary tube: 5mm
Cable entrance: 1 x gland M20, clamping range 10-14mm 1 x thread M 20 x 1.5
Salt-water proof: Yes
